Cast Steel Products (Civil Engineering and Architectural Applications, etc.)
Flexible support for everything from small-lot to mass production, with freedom in shape and wall thickness

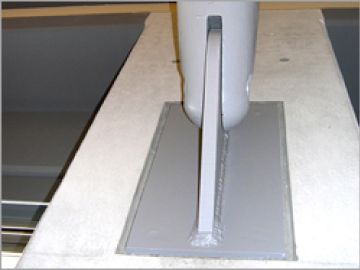

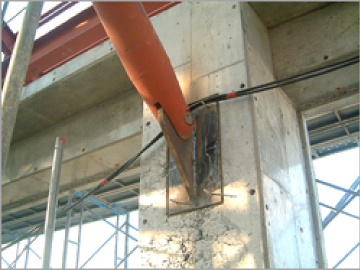

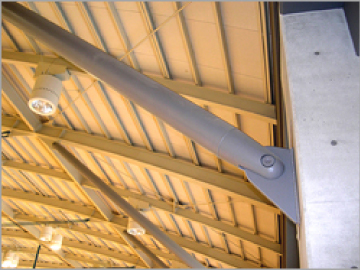

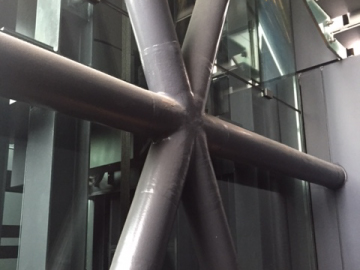

Cast steel fittings are widely used to enable smooth stress transfer in structures and to realize designs with curved forms. Because cast steel fittings are often welded to other main steel-frame members, materials are selected primarily with weldability in mind. Materials that take fire resistance and weather resistance into consideration are also beginning to be used.
Material
Mechanical Properties of Cast Steel Materials (Excerpt)
| Material | Yield Point | Tensile Strength | Elongation | Charpy Absorbed Energy (J) |
|---|---|---|---|---|
| (N／mm2) | (N／mm2) | (％) | ||
| SC480 | 245and above | 480and above | 17and above | No regulations |
| SCW410 | 235and above | 410and above | 21and above | 27and above |
| SCW410-CF | 235and above | 410and above | 21and above | 27(24)(20)and above |
| SCW480 | 275and above | 480and above | 20and above | 27and above |
| SCW480-CF | 275and above | 480and above | 20and above | 27(24)(20)and above |
| SCW490-CF | 315and above | 490and above | 20and above | 27(24)(20)and above |
| SCS13AA-CF | (0.1%Proof Stress) 235and above |
520and above | 35and above (14A,No. B) |
No regulations |
Standard Strength
Standard Strength (F-value) of Cast Steel Products
| Material | Standard Strength |
|---|---|
| (N／mm2) | |
| SC480 | 235 |
| SCW410 | 235 |
| SCW410-CF | 235 |
| SCW480 | 275 |
| SCW480-CF | 275 |
| SCW490-CF | 315 |
| SCS13AA-CF | 235 |
