Pipe End Clevis Type C (for Seismic Bracing)
Features of Pipe End Clevis (Type C)
- Because it satisfies strength requirements even with thick-walled steel pipes, it can be used in high-strength ranges.
- Because it can be used with thick-walled steel pipes, it can appear slimmer than H-shaped steel.
- Because Pipe End Clevis is used as the end hardware, the connection has excellent design quality.
- By connecting the Pipe End Clevis with a turnbuckle and end fitting, length adjustment can be performed on site, providing excellent workability regardless of steel-frame accuracy.
- Because length adjustment is possible, installation can be performed even when the clearance (play) between the pin and gusset plate is small, making it ideal as a seismic brace.

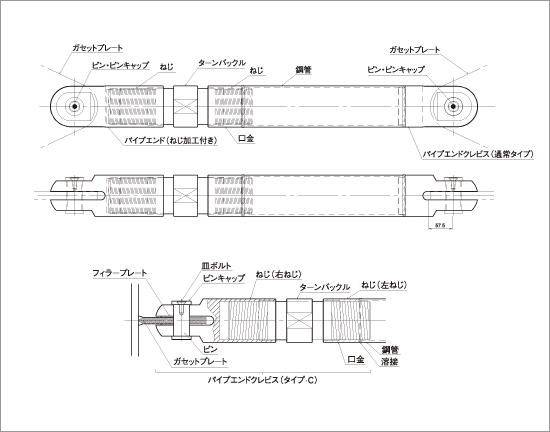

How to Use Pipe End Clevis (Type C) as a Seismic Brace
Pipe End Clevis Type C (Sizes)
| Pipe Size | Φ34.0 | Φ42.7 | Φ48.6 | Φ60.5 | Φ76.3 | Φ89.1 | Φ101.6 | Φ114.3 |
|---|---|---|---|---|---|---|---|---|
| SCW410 SCW480 |
－ | － | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 |
| Φ139.8 | Φ165.2 | Φ190.7 | Φ216.3 | Φ267.4 | Φ318.5 | Φ355.6 | Φ406.4 | |
| 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 |
Sizes other than those listed above can be manufactured, but they will be treated as custom products.
